    Architecture

    High-level architectural overview of jeeves-watcher for contributors and advanced users.

    1. Files are just files — Processes write to the filesystem normally. The watcher discovers changes passively.
    2. Config-driven, no domain logic — The watcher doesn't know what an "email" or "meeting" is. Domain semantics live in config (inference rules).
    3. Embedding is swappable — Embedding providers are selected by embedding.provider; adding a provider is a small, self-contained code change (see Add a New Embedding Provider).
    4. Metadata enrichment is optional — The watcher works without it, but callers can enrich documents for better search quality.
    5. Three sources of truth — Filesystem owns content, the enrichment store owns enrichment, Qdrant is a derived index (fully rebuildable).

    System Architecture

    The watcher consists of several layered components:

    • Configuration Layer — Zod-validated config with environment variable substitution
    • Watch Layer — Chokidar filesystem watcher feeding the file event queue; source-document notifications feed a separate notify queue
    • Processing Layer — Document processor: resolvers (file and source), extractors, inference rules engine, and one shared chunk/embed/upsert pipeline
    • State — Enrichment store, issues file and values index under stateDir (default .jeeves-metadata)
    • External Services — Configurable embedding provider (behind one shared rate limiter) + Qdrant vector store
    • API Layer — Fastify HTTP server for search, enrichment, reindex, source notifications and administration
    • CLI Layer — Command-line interface for operations

    Three Sources of Truth

    The system maintains three distinct stores:

    • Filesystem (watched directories) — Primary source of document content
    • Enrichment store (<stateDir>/enrichments.sqlite, node:sqlite) — Enrichment metadata added via API
    • Qdrant (vector database) — Derived index, fully rebuildable

    Qdrant lost → Rebuild from filesystem + enrichment store:

    jeeves-watcher reindex --scope full

    Re-extracts every watched file, merges its enrichment from the enrichment store, re-embeds the content and upserts to Qdrant. (The CLI's default scope is rules, which only re-applies rules to points that already exist.)

    Enrichment store lost → Rebuild from Qdrant:

    jeeves-watcher rebuild-metadata

    Scrolls Qdrant and, for every file point, writes its payload minus the reserved system fields (identity, chunk, hash, date, line and matched_rules fields) to the enrichment store. Rule-derived fields are therefore written too; source documents are not rebuilt.

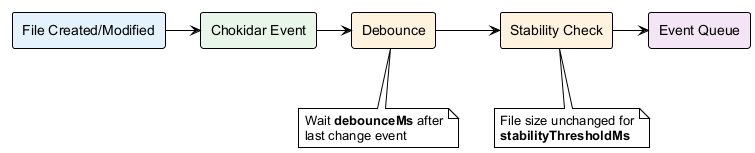

    File Change Event

    Debounce: Events for the same path are collapsed until watch.debounceMs (default: 300 ms) has passed since the last one (prevents re-embedding during rapid edits).

    Stability Check: Chokidar's awaitWriteFinish holds an event until the file size has been unchanged for watch.stabilityThresholdMs (default: 500 ms; prevents embedding partial writes).

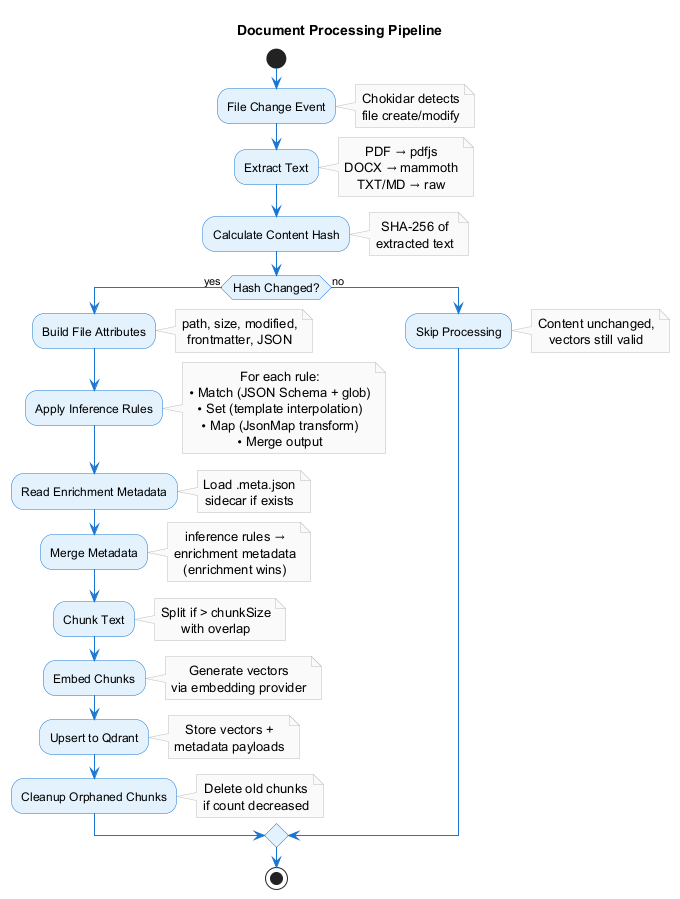

    Document Processing Pipeline

    The core processing flow transforms file changes into searchable vectors. The file resolver (steps 1–4) produces a document; the shared pipeline (steps 5–12) indexes it. Source documents use the source resolver and the same pipeline.

    1. Extract Text — Format-specific extraction (PDF, DOCX, Markdown, etc.)
    2. Build Attributes — Collect file attributes (path, size, modified, frontmatter, JSON)
    3. Apply Inference Rules — Match → Schema Merge → Type Coercion → Map → Merge (see Inference Rules)
      • Match rules against file attributes (JSON Schema validation)
      • Merge schema references (global schemas + inline) left-to-right
      • Resolve set templates and coerce to declared types
      • Apply JsonMap transformations (if present)
      • Track matched rule names in matched_rules
    4. Merge Enrichment — Read the document's entry from the enrichment store and merge it over the rule metadata (scalars: enrichment wins; arrays: union, deduplicated)
    5. Update Values Index — Record distinct values per property per matched rule (runs even when the content turns out unchanged)
    6. Empty Check — Whitespace-only text is skipped (logged at debug as Skipping empty document)
    7. Content Hash — SHA-256 of the text to embed (a matching rule's rendered template output, otherwise the extracted text)
    8. Hash Check — If chunk 0 already carries the same content_hash, the file is skipped: nothing is embedded or written
    9. Chunk Text — Split large documents with overlap
    10. Embed Chunks — Generate vectors via the embedding provider (up to 100 chunks per request)
    11. Upsert to Qdrant — Store vectors + payloads (including matched_rules), 50 points per request
    12. Cleanup Orphaned Chunks — Remove old chunks if the document shrank

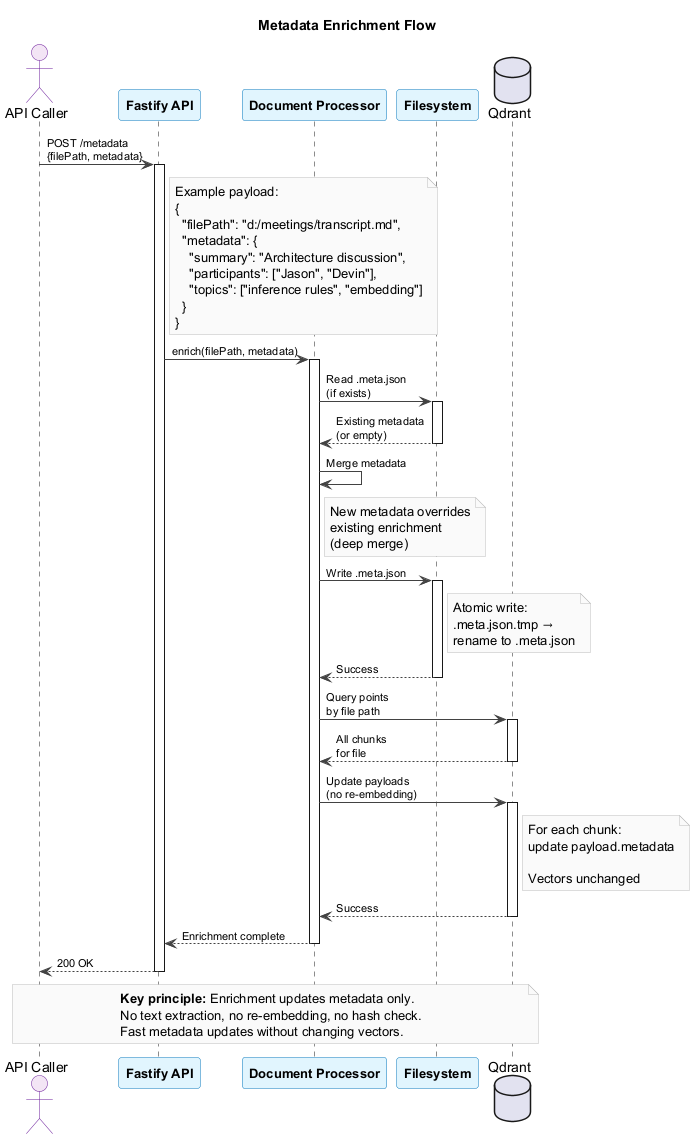

    Metadata Enrichment Flow

    The enrichment API allows external callers to add metadata without re-embedding:

    1. POST /metadata with a file path (or a source reference source) and metadata; values that do not match the matching rules' declared property types are rejected with 400 invalid_request
    2. Store — The metadata is merged into the document's entry in the enrichment store (top-level keys replace existing ones). For a file, the entry is stored even when the file is not indexed yet, so it applies once it is
    3. Update Qdrant payloads — If the document is indexed, the stored enrichment is written to the payload of every chunk (reserved system fields are dropped; the stored identity and matched_rules are kept)

    Key principle: Enrichment updates metadata only. No text extraction, no re-embedding, no hash check. Fast metadata updates without changing vectors.

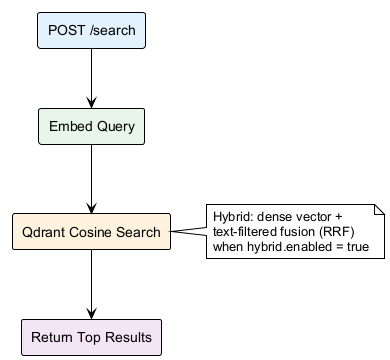

    Search Flow

    Chunk deduplication: Search returns individual chunks. Callers group by file_path (or source) to get unique documents.

    Documents exceeding embedding.chunkSize (default: 1000 characters) are split into chunks.

    Splitters:

    • Markdown files (.md, .markdown) — MarkdownTextSplitter (splits on heading boundaries, preserves structure)
    • All other files — RecursiveCharacterTextSplitter (splits on \n\n, then \n, then spaces, then characters)

    Both splitters use:

    • chunkSize — max characters per chunk
    • chunkOverlap — overlap between consecutive chunks (default: 200; helps preserve context at boundaries)

    Chunk Points:

    Each chunk becomes a separate Qdrant point with:

    • Unique ID: pointId(filePath, chunkIndex) (deterministic UUID)
    • Shared payload: file_path, matched_rules, rule and enrichment metadata, content_hash, created_at, modified_at (same across all chunks)
    • Chunk-specific: chunk_index, total_chunks, chunk_text, line_start, line_end

    Example:

    File with 3 chunks → 3 Qdrant points:

    Point ID chunk_index total_chunks chunk_text
    uuid-0 0 3 "First chunk..."
    uuid-1 1 3 "Second chunk..."
    uuid-2 2 3 "Third chunk..."

    The v0.5.0 inference rules system uses declarative JSON Schemas with type coercion. When a rule matches a file, the watcher merges schema references and applies type coercion:

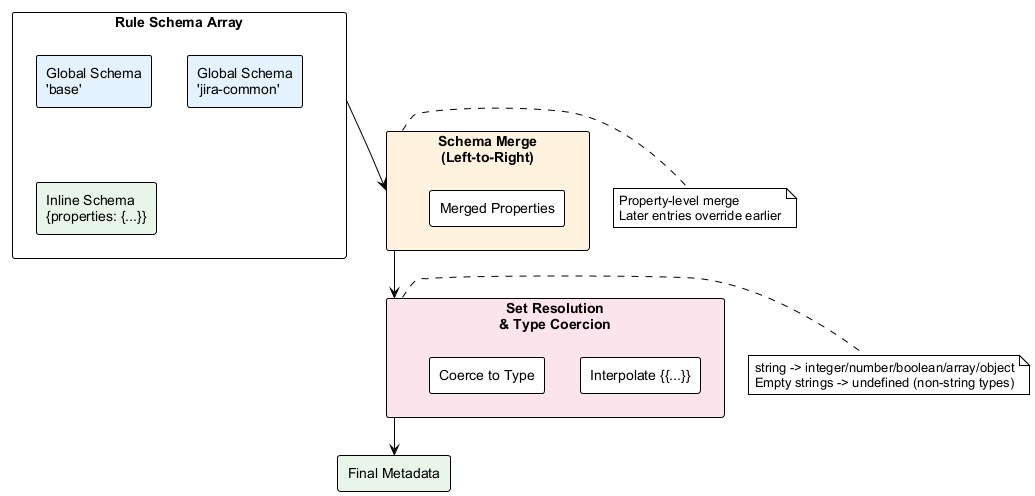

    Schema Merge Flow

    Key steps:

    1. Resolve named references from global schemas collection
    2. Merge properties left-to-right (later entries override earlier ones)
    3. Validate completeness — every property must have a type
    4. Resolve set templates — interpolate {{...}} Handlebars expressions against file attributes
    5. Coerce values — convert strings to declared types (integer, number, boolean, array, object)
    6. Omit failures — properties that fail coercion are excluded from payload

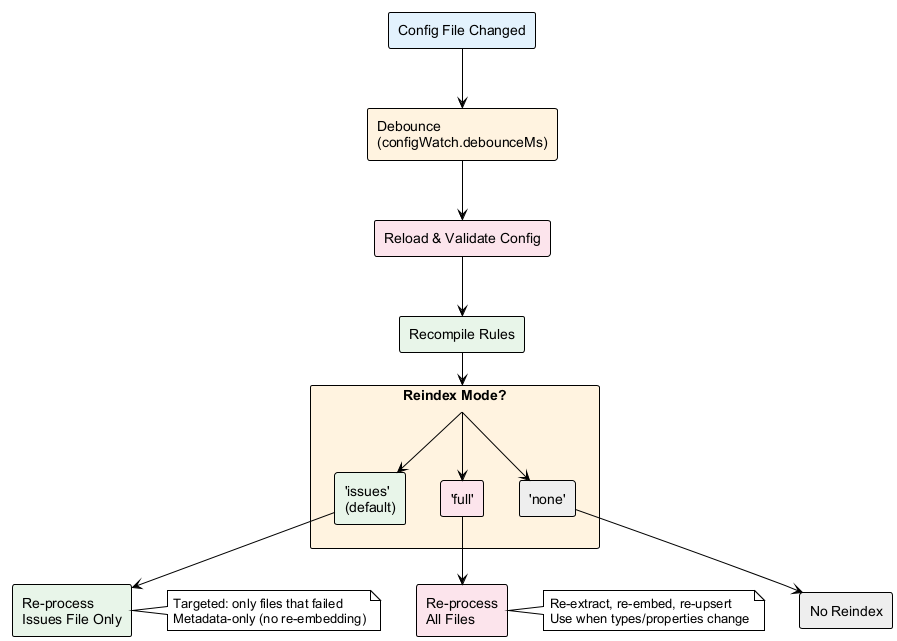

    When the config file changes, the watcher triggers a reindex whose scope is set by configWatch.reindex:

    Config Watch Reindex Flow

    Scopes:

    • issues (default) — Re-process only the files and source references listed in the issues file (cheap, targeted)
    • rules — Re-apply the rules to indexed files without re-embedding
    • full — Re-process all watched files and indexed source documents (expensive, comprehensive)

    To turn automatic reloads off, set configWatch.enabled to false (then use POST /reindex manually).

    Content Hashing

    Every processed document gets a content hash (sha256 of the text to embed) stored in the Qdrant payload.

    Whenever a file is processed (initial scan, create, modify, issues/path/full reindex):

    1. Extract text and apply rules
    2. Compute hash
    3. Read the existing chunk-0 point from Qdrant
    4. If content_hash matches → skip (no embedding API call, no write)
    5. If the hash differs or the point is missing → re-embed and upsert

    Benefits:

    • Saves embedding API calls when the embedded text is unchanged (e.g. a file touched or rewritten with the same content)
    • Prevents unnecessary Qdrant writes
    • Speeds up reindex (only changed files are re-embedded)

    Note: A skipped file is not rewritten at all, so an edit that leaves the embedded text unchanged (such as a Markdown frontmatter-only edit) does not refresh rule metadata on its points. Run a rules reindex to re-apply rules without re-embedding.

    Qdrant point IDs are deterministic UUIDs derived from the document's identity (see src/pointId/index.ts):

    import { v5 as uuidV5 } from 'uuid';

    const NAMESPACE = '6a6f686e-6761-4c74-ad6a-656576657321'; // fixed

    // Files: the path is normalised, so file IDs are case-insensitive.
    function pointId(filePath: string, chunkIndex: number): string {
      return uuidV5(`${normalizePath(filePath)}#${chunkIndex}`, NAMESPACE);
    }

    // Source documents (v0.20.0+): the exact <name>://<id> reference, not normalised.
    function sourcePointId(reference: string, chunkIndex: number): string {
      return uuidV5(`${reference}#${chunkIndex}`, NAMESPACE);
    }

    Why deterministic:

    • Same file always produces the same ID
    • No need to store ID anywhere — it's computable from the path
    • A move gets new IDs: the old points are re-written under the new path's IDs (vectors reused, no re-embed) and then deleted

    Trade-off: Renaming/moving files changes their identity in the index. Acceptable — the watcher handles it transparently (with watch.moveDetection, an unlink followed by an add of the same content is treated as a move).

    Filesystem events go through one debounced, concurrent queue.

    Debounce: Events for one path (and priority) are collapsed: only the last event within watch.debounceMs (default: 300 ms) is processed.

    Concurrency: Up to embedding.concurrency (default: 5) documents are processed at once; normal-priority events run before low-priority ones. Embedding API requests from every path (watch, source-document notifications, reindex, search) draw from one shared rate limiter (embedding.rateLimitPerMinute, counted in requests since v0.20.0).

    Failures: A failing document is logged and recorded in the issues file; it does not stop the queue.

    Source-document notifications (v0.20.0+) go through a separate in-memory queue keyed by reference, with the same embedding.concurrency. Pending notifications for one reference merge; a notification for a reference that is already running marks it for exactly one re-run.

    Both queues end in the document processor. A file resolver stats and extracts the file and applies every matching rule; a source resolver retrieves the <name>://<id> reference through its callback and applies only the designated rule. Each produces a resolved document for the same chunk/embed/upsert pipeline. Source rules get no file reader: a map's fetchSiblings returns nothing for a source document.

    On service start:

    1. Load and validate the config; reserved-field warnings are printed to the console
    2. Create the Qdrant collection if missing and ensure its payload indexes
    3. Open the enrichment store, issues file and values index under stateDir
    4. Start the API server, then the filesystem watcher and the source notify queue
    5. Initial scan: every file matching watch.paths (and not ignored or gitignored) is queued as a create event
    6. Each queued file runs through the pipeline: unchanged files are skipped by content hash, new and modified files are embedded

    Points of files deleted while the service was down are not removed at startup; run a prune reindex (jeeves-watcher reindex --scope prune) to delete them.

    When configWatch.enabled is true (the default) and the service was started with a config path, the watcher monitors its own config file.

    On config change:

    1. Debounce for configWatch.debounceMs (default: 1000 ms)
    2. Reload and validate the config; reserved-field warnings are logged as warnings
    3. Recompile inference rules and rebuild the template engine
    4. Rebuild the filesystem watcher if the watch config changed
    5. Run a reindex with scope configWatch.reindex (default: issues)

    A reload that fails is logged (Failed to reload config) and the previous config stays in effect. api.apiKey, sources and vectorStore.payloadIndexes are read at startup only.

    Enrichment lives in a SQLite database at <stateDir>/enrichments.sqlite, opened with Node's built-in node:sqlite (WAL journal, 5 s busy timeout). One table holds one row per document:

    Column Content
    path Document key (primary key)
    metadata Enrichment metadata as JSON (no content/vectors)
    created_at ISO timestamp of the first write
    updated_at ISO timestamp of the last write

    Keys: File paths are normalised (lowercase, forward slashes), so lookups are case-insensitive; source references (<name>://<id>) are stored verbatim.

    Merge on write: A new write merges into the existing entry; top-level keys of the new metadata replace existing ones.

    The enrichment store is watcher-owned. Only the watcher process writes to it: POST /metadata, POST /rebuild-metadata, file moves (the entry follows the file) and file deletes (the entry is removed).

    Enforcement: Architectural policy (single writer; no filesystem permissions).

    Rules are JSON Schema match + schema arrays, evaluated in order against file attributes.

    Attributes:

    {
      "file": {
        "path": "d:/meetings/2026-02-20/transcript.md",
        "directory": "d:/meetings/2026-02-20",
        "filename": "transcript.md",
        "extension": ".md",
        "sizeBytes": 4523,
        "modified": "2026-02-20T08:15:00.000Z"
      },
      "frontmatter": { "title": "Meeting Notes", "author": "jeeves" },
      "json": { "participants": ["Alice", "Bob"] }
    }

    Rule example (v2):

    {
      "name": "meetings-classifier",
      "description": "Classify meeting transcripts and notes",
      "match": {
        "properties": {
          "file": {
            "properties": {
              "path": { "type": "string", "glob": "d:/meetings/**" }
            }
          }
        }
      },
      "schema": [
        "base",
        {
          "properties": {
            "domain": { "type": "string", "set": "meetings" },
            "title": { "type": "string", "set": "{{frontmatter.title}}" }
          }
        }
      ],
      "map": "extractProject"
    }

    Processing order for each matching rule:

    1. match — JSON Schema validation against file attributes
    2. Schema merge — Resolve named schemas + inline objects, merge left-to-right
    3. set resolution — Handlebars template interpolation ({{...}}) resolves against attributes, with type coercion
    4. map — JsonMap transformation (inline or named reference)
    5. Merge — map output overrides set output on field conflict

    Custom glob keyword: Picomatch glob matching registered as an ajv custom keyword. Everything else is standard JSON Schema (with the standard ajv-formats formats).

    JsonMap transformations (map):

    Rules can reference named maps from the top-level maps config, or include inline JsonMap definitions. The watcher provides lib functions for path manipulation and lookups: split, slice, join, toLowerCase, replace, get, lookupJson, mapLookup, fetchSiblings; custom functions can be added via mapHelpers.

    See Inference Rules Guide for full details.

    Text Extraction

    Extension Strategy
    .md, .markdown Parse YAML frontmatter (exposed as frontmatter attributes), return the body text
    .txt, .text Return as-is (BOM stripped)
    .json Return the first non-empty string among content, body, text, snippet, subject, description, summary, transcript; otherwise the serialized JSON. A JSON object is also exposed as json attributes
    .pdf Extract text via the unpdf library (pages joined)
    .docx Extract raw text via the mammoth library
    .html, .htm Drop script/style, take the body text via the cheerio library

    Any other extension is read as plain text. Use watch.paths globs (or watch.ignored) to keep binary files such as .png out of the index. A file whose extracted text is empty or whitespace-only is skipped.

    Transient failures are retried; anything that still fails is recorded as an issue:

    Failure Retry Policy
    Embedding provider 429 (rate limit) Every caller pauses on the shared limiter. A Retry-After up to maxBackoffMs (default 60 s) is honoured; a longer one fails fast. Without Retry-After: backoff from 1 s, doubling, capped at maxBackoffMs. Up to 5 provider calls per embed (3 for a search query)
    Embedding provider network error or other non-2xx 5 attempts, exponential backoff from 500 ms capped at 10 s (+ up to 20% jitter); each retry draws from the shared limiter
    Qdrant write (upsert, delete, set-payload, delete-payload) 5 attempts, same backoff, each retry on a fresh Qdrant client
    Text extraction error No retry (logged and recorded as an extraction_error issue)

    Issues file: Documents that fail are recorded in the issues file (persisted to {stateDir}/issues.json) with a canonical issue code (embedding_error, upsert_error, extraction_error, ...). Surfaced via GET /issues; re-processed by an issues reindex (the default on config reload).

    On SIGTERM/SIGINT (v0.20.0+ order):

    1. Stop the config watcher
    2. Close the API server, so no new request (notification, reindex, ...) is accepted
    3. Stop the remaining producers: VCS, then the filesystem watcher
    4. Drain and stop the file event queue, then drain and stop the source notify queue (each drain and each stop bounded by shutdownTimeoutMs, default 10 s); stopping drops work the drain did not reach and waits for in-flight runs
    5. Flush the values index
    6. Close the enrichment store, unless a queue step timed out (runs may still be in flight; the store is then left open and a warning is logged)
    7. Exit

    Partially processed files are safe — on the next start the initial scan re-processes every file, and content hashing skips the ones already indexed.

    On startup, if the Qdrant collection doesn't exist, the watcher creates it, then creates any missing payload indexes (configured vectorStore.payloadIndexes plus the system source/source_rule indexes):

    await qdrant.createCollection(collectionName, {
      vectors: {
        size: dimensions, // embedding.dimensions (Gemini default: 3072)
        distance: 'Cosine',
      },
    });

    Existing collections: If the collection already exists, it is used as-is — dimensions and distance metric are not validated against config on startup.

    Dimension mismatch warning: If you manually create the collection with different dimensions (e.g., 768 instead of 3072), the service will start but embedding upserts will fail with a dimension mismatch error.

    Recovery: Delete the collection manually (or rename collectionName in config), then restart. The watcher will recreate the collection with correct dimensions.

    Structured JSON logging via pino, at logging.level (default info):

    Level Events (log message)
    info File processed successfully, File deleted from index, File moved in index, Metadata updated, Config reloaded, Initial scan complete, Reindex (<scope>) completed, jeeves-watcher started / stopped
    warn Embedding call failed; will retry, Qdrant <operation> failed; will retry, shutdown step timeouts, reserved-field warnings on reload
    error Failed to process file (after retries; issue recorded), Failed to reload config, Reindex failed, Watcher error
    debug Content unchanged, skipping, Skipping empty document, File added / File changed / File removed, Skipping gitignored file

    Log format: JSON lines on stdout, or to logging.file when set (parseable by standard log aggregators).

    Component Library Rationale
    Filesystem watcher chokidar Cross-platform, battle-tested (globs are matched with picomatch)
    HTTP framework fastify Lightweight, fast
    Request validation zod Shared request/response schemas in the core package
    Text splitting @langchain/textsplitters Markdown-aware + recursive splitting
    JSON Schema validation ajv Fast, extensible (custom glob keyword)
    Embedding client Direct HTTPS (node:https, Gemini REST API) No SDK bloat
    Qdrant client @qdrant/js-client-rest Official client, typed
    Enrichment store node:sqlite Built into Node.js, no native build
    Logging pino Structured JSON, low overhead

    Extractors are registered in code, not in config. Implement an extractor and add it to extractorRegistry in src/extractors/index.ts:

    async function extractYaml(filePath: string): Promise<ExtractedText> {
      const content = await readFile(filePath, 'utf8');
      const parsed = yamlLoad(content) as Record<string, unknown>;
      return {
        text: JSON.stringify(parsed, null, 2),
        json: parsed,
      };
    }

    const extractorRegistry = new Map<string, Extractor>([
      // ...existing entries
      ['.yaml', extractYaml],
    ]);
    1. Implement a provider factory (see src/embedding/types.ts):
    const createMyProvider: ProviderFactory = (config, logger) => ({
      dimensions: config.dimensions ?? 1024,
      async embed(texts: string[]): Promise<number[][]> {
        // Call your provider's API (one request per call)
      },
    });
    1. Register it in embeddingProviderRegistry in src/embedding/index.ts:
    const embeddingProviderRegistry = new Map<string, ProviderFactory>([
      ['mock', createMockFromConfig],
      ['gemini', createGeminiProvider],
      ['my-provider', createMyProvider],
    ]);
    1. Use in config:
    {
      "embedding": {
        "provider": "my-provider",
        "model": "my-model",
        "apiKey": "${MY_API_KEY}"
      }
    }

    The VCS subsystem runs alongside the embedding pipeline as an independent data flow. Both systems share watch paths but maintain separate state.

    1. File change event → routed to both the embedding pipeline and VCS coordinator
    2. VCS coordinator → maps the file to the correct watch root's VcsManager
    3. VcsManager → adds file to pending set, resets debounce timer
    4. Debounce expires or batch full → commitBatch() stages files, generates commit message, commits
    5. If remote configured → pushes to remote (non-blocking)
    6. Squash scheduler (cron) → periodically squashes old commits per retention rules
    • D1: VCS is opt-in (vcs.enabled: false by default)
    • D2: One git repo per watch root — isolated histories
    • D3: VCS and watcher indexing are independent — git can track files the watcher cannot embed and vice versa
    • D4: Child repos tracked uniformly; child .git/ directories excluded
    • D5: Debounced batch commits prevent per-file commit noise
    • D6: AI commit messages via the Anthropic API (key from vcs.commitMessage.apiKey, else from the local OpenClaw config); template message fallback
    • D7: Squash retention with maxAgeDays / maxVersions (tighter wins)
    • D8: Forward-only reversion — git show + write, HEAD never moves backward
    • D9: Optional remote push per root with access token auth
    • D12: Per-root config overrides via watch.paths object entries
    • D13: Force push after squash — acceptable because remote is a backup mirror
    • D14: Git is a soft dependency — graceful degradation if not installed
    • D15: stateDir must not overlap watch paths — validated at startup when VCS is enabled

    Each VcsManager serializes commits within its root (single commit in-flight). The index.lock retry mechanism (4 attempts, exponential backoff) handles contention with external git processes. Squash operations that encounter a held lock abort cleanly and retry on the next cron cycle.

    See the Version Control (VCS) Guide for full operational details.

    Settings
    Member Visibility

    On This Page
    Architecture
